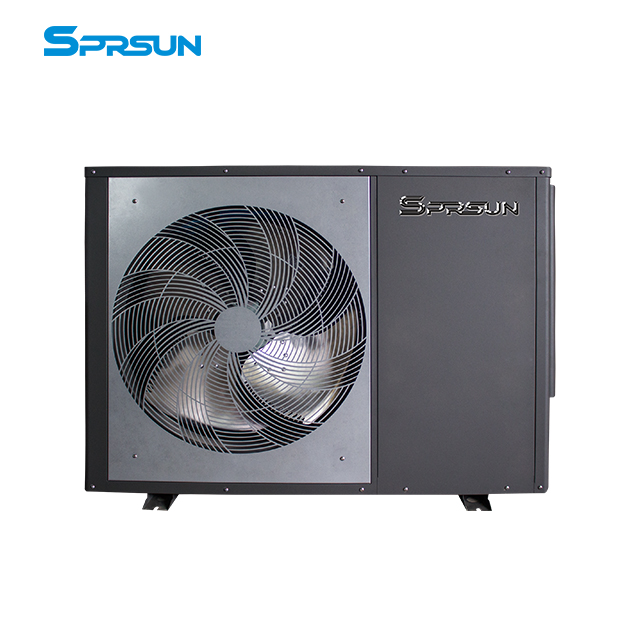

R32 ERP A+++ 12kW EVI DC invertorová monobloková tepelná čerpadla vzduch-voda

1. Max. COP: 5.56 2. Napájení: 220V~240V/50Hz/1ph or 380V~420V/50Hz/3ph 3. Rozsah pracovních teplot: -25℃~45℃ 4. Max. topný výkon: 12KW 5. Max. chladicí výkon: 10.9KW 6. Funkce: ohřev vody/topení/chlazení/ohřev vody+chlazení/ohřev vody+topení
Stav dostupnosti:
  • CGK030V3L CGK-030V3L



R32 ERP A+++ 12KW EVI DC Inverter Air to Water Heat Pumps - Monoblock Type is a reliable solution for cold climates. These heat pumps can accommodate anyone's heating needs with their operating temperature range of -25°C to 45°C, 12KW of heating power, 10.9KW of cooling power, and power supply ranges of 220V-240V or 380V-420V. This air to water heat pump operates more efficiently while having no impact on the environment thanks to the use of R32 refrigerant gas. With an ERP A+++ certification, a 5.56 COP, and a DC inverter that more effectively circulates the fluids, it has improved efficiency. Users can save money on their heating expenses thanks to these pros.

R32 ERP A+++ EVI DC Inverter Heat Pump


CGK030V3L CGK-030V3L
Power Supply / Refrigerant V/Hz/Ph 220-240/50/1 - R32 380-420/50/3 - R32
Max. Heating Capacity (1) kW 12 12
C.O.P (1) W/W 4.45 4.45
Heating Capacity Min./Max.(1) kW 5.52 / 12 5.52 / 12
Heating Power Input Min./Max.(1) W 992 / 2697 992 / 2697
C.O.P Min./Max. (1) W/W 4.45 / 5.56 4.45 / 5.56
Max. Heating Capacity (2) kW 11.5 11.5
C.O.P (2) W/W 3.60 3.60
Heating Capacity Min./Max.(2) kW 5.30 / 11.52 5.30 / 11.52
Heating power input Min./Max.(2) W 1254 / 3236 1254 / 3236
C.O.P Min./Max. (2) W/W 3.56 / 4.23 3.56 / 4.23
Max. Cooling Capacity (3) kW 10.9 10.9
E.E.R (3) W/W 3.50 3.50
Cooling Capacity Min./Max.(3) kW 5.03 / 10.94 5.03 / 10.94
Cooling Power Input Min./Max.(3) W 1215 / 3704 1215 / 3704
E.E.R Min./Max. (3) W/W 2.95 / 4.14 2.95 / 4.14
Max. Cooling Capacity (4) kW 8.6 8.6
E.E.R (4) W/W 2.62 2.62
Cooling Capacity Min./Max.(4) kW 3.97 / 8.64 3.97 / 8.64
Cooling Power Input Min./Max.(4) W 1090 / 3440 1090 / 3440
E.E.R Min./Max. (4) W/W 2.51 / 3.65 2.51 / 3.65
Rated Current  A 12.9 5.7
Max Current A 18.71 8.25
Compressor Type - Quantity/System
Twin Rotary - 1 Twin Rotary - 1
Fan Quantity
1 1
Airflow m3/h 3000 3000
Rated power W 100 100
Water Side Heat Exchanger Type
Plate Heat Exchanger Plate Heat Exchanger
Water Pressure Drop kPa 20 20
Piping Connection Inch G1" G1"
Allowable Water Flow Min./Rated./Max. L/S 0.36 0.57 0.96 0.36 0.57 0.96
Noise Level
dB(A) 59 59
Net Dimension(L×D×H) mm 1100*475*810 1100*475*810
Net Weight Kg 88 88
Note:  (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
         (2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
         (3) Cooling condition: water inlet/outlet temperature: 23/18, Ambient temperature: DB35/WB24;
         (4) Cooling condition: water inlet/outlet temperature: 12/7, Ambient temperature: DB35/WB24.


Lower GWP


The new refrigerant gas R32 helps our DC inverter heat pumps operate more cleanly and effectively, which has less harmful effects on the atmosphere with lower carbon emissions and zero ozone depleting potential.

Lower GWP of R32 Heat Pump


increased efficiency of sprsun R32 heat pump


With maximum COP 5.95, our ERP A+++ R32 EVI DC inverter heat pumps charge and recirculate more efficiently than DC inverter heat pumps of other refrigerants. They consume less energy, and can therefore help families reduce energy bills.

High COP R32 DC Inverter Heat Pump


SPRSUN R32 heat pump smart technology


The CAREL controller is able to record temperatures unaided using sensors that record the surrounding conditions. With the WIFI online monitoring, customers will enjoy contactless support from our customer service center no matter where they are. Our R32 EVI DC inverter heat pumps are also featured with more intelligent protections.

R32 Smart Control DC Inverter Heat Pump


Super Low Noise


In addition to brushless DC inverter fans, SPRSUN R32 DC inverter heat pumps adopt reinforced sound reduction measures such as the dual shock absorption by Panasonic Compressor. The sound levels start as low as 42 dBA, making itself the quietest system in our DC inverter lineup.





The refrigerant R32 is considered to be environment friendly, but improper handling and storage might lead to potential safety issues. All of this can be avoid by using SPRSUN R32 DC inverter heat pumps, since they are designed with anti-explosion measures to guarantee the safety.

heat pump safety


组 21


Technical Support


Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.


Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.


During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.


After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers standard 24-month warranty. Customers can choose to extend the warranty to 5 years with a small amount of fee. Within the warranty period since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.




Projects Worldwide

Selling Heat Pumps Globally for 23 Years

SPRSUN is a professional heat pump manufacturer founded in 1999. As one of the leading heat pump suppliers in China, SPRSUN manufactures several different types of heat pumps, including DC inverter heat pumps, air source hot water heat pumps and swimming pool heat pumps. They are produced based on EN14511 standard with CCC, CE, CB, SAA, ROHS, TUV and ERP certificates. We also cooperate with leading companies such as Panasonic, CAREL, Grundfos, Copeland, Mitsubish and Sanyo to ensure upgraded product quality. Over the years, excellent products based on leading technology and professional service have earned SPRSUN its reputation as one of the leading heat pump suppliers all over the world.
